Digitech Trio Plus Band Creator

Digitech Trio Plus Band Creator

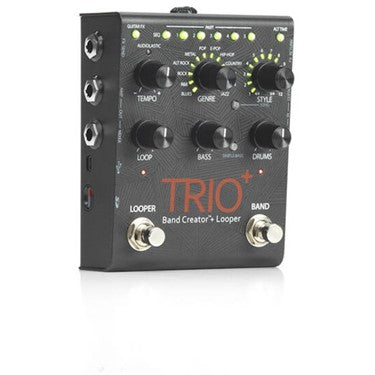

The TRIO+ is a simple-to-use guitar pedal that listens to the way you play and automatically generates bass and drum parts that match your song. Just plug your guitar into the TRIO+, press the Band footswitch to teach the TRIO+ your chords and rhythm, then press the Band footswitch again to start playing with your own personal band! Bass and drum levels can be adjusted for the perfect mix using the TRIO+'s Bass and Drums knobs. The TRIO+ also features a Simple Bass button lets you select between 3 bass line modes for busy or simple bass lines. Pushing the Band Creator™ paradigm further, the TRIO+ also allows you to loop and custom sequence your looped guitar parts to create full songs on the fly. Press the TRIO+'s Looper footswitch to record a loop along with an unlimited number of overdubs. The Loop level can be individually controlled using the TRIO+'s Loop knob. Loops can be recorded by themselves, operating just like a traditional looper, or along with the band. You can also apply built-in effects to your guitar signal by enabling the TRIO+'s Guitar FX button, or connect your favorite effects to the TRIO+'s FX Send and FX Return jacks. The TRIO+ provides 12 music genres to choose from including Blues, R&B, Rock, Alternative Rock, Metal, Pop, Electronic Pop, Hip-Hop, Country, Folk, Latin, and Jazz. 12 song styles are available for each genre and can be selected using the TRIO+'s Style encoder, including selection between 3/4 and 4/4 time signatures. Multi-colored LEDs around the TRIO+'s Style encoder indicate which styles best match your song. The TRIO+ can learn up to 5 different song parts, perfect for creating an intro, verse, chorus, bridge and outro. Song parts can be recalled on-the-fly as the song plays back or pre-programmed as a sequence for automated playback. An optional DigiTech FS3X Footswitch can be connected to the TRIO+'s Control In jack for additional handsfree control with 3 modes of operation to select from. Up to 12 songs along with loops can be stored to the TRIO+'s Micro SD Card (included). Need to create more songs? No problem. Just insert a new SD Card and you're ready to start teaching the band your new songs. To manage all your songs and loops on a computer, download the free Librarian Manager software from digitech.com, available for Windows® and Mac®. The TRIO+ offers independent Tempo, Genre, Style, Loop Level, Bass Level, Drums Level, Headphone Output Level controls; Guitar, FX Return and Control Inputs; Amplifier, Mixer, FX Send and Headphone Outputs; Built-in Guitar Effects (relative to music genre); a Soft Click Footswitch and includes a 9V DC adapter.

General Specifications

ControlsTempo, Genre, Style, Loop, Bass, Drums, Headphone Volume
Backlit ButtonsGuitar FX, Seq, Part 1-5, Alt Time, Song, Simple Bass
FootswitchesLooper, Band
LEDsGenre types, Style 1–12, Audiolastic, Looper, Band
JacksPower, Control In, Guitar In, FX Return, FX Send, Amp Out, Mixer Out, Headphone
OtherMini USB port, microSD card slot
Bit Depth24-bit
Sample Rate44.1 kHz
Signal-To-Noise Ratio110dB, A-weighted
Maximum Recording Time230 seconds per song part — based on a minimum 50 BPM and 48 bars per part
USB TypeMini-B
SD Card TypemicroSDHC, Class 10
SD Min/Max Storage Size8 GB/32 GB
Power Requirements9 VDC external power adapter
Power Consumption7.2 W
Current Draw800 mA

Dimensions

Length5.4"
Width4.25"
Height2.5"
Weight1.46 lbs.

Audio Output

Amp Output TypeUnbalanced, 1/4" TS
Amp Output Impedance1 kΩ
Mixer Output TypeUnbalanced, 1/4" TS
Mixer Output Impedance1 kΩ
FX Send Output TypeUnbalanced, 1/4" TS
FX Send Impedance1 kΩ
Headphone Output Type1/8" (3.5 mm) Stereo Mini Jack
Headphone Output Impedance120 Ω

Audio Input

Guitar Input TypeUnbalanced, 1/4" TS
Guitar Input Impedance1 MΩ
FX Return Input TypeUnbalanced, 1/4" TS
FX Return Impedance1 MΩ
Control Input Type1/4" TRS (compatible with DigiTech FS3X)
