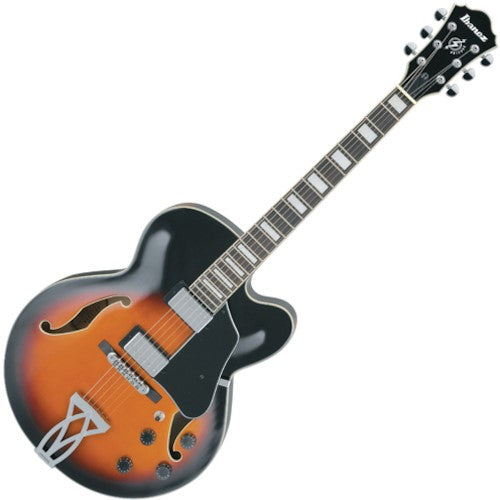

Ibanez AF75 Artcore Hollow Body Electric Guitar (Brown Sunburst)

Product Description

The AF is the most traditional of the Artcore series. The traditional full-hollow construction means there are no sound blocks in the body. Producing rich and complex tones, the AF is the guitar for the purist in all of us.

Specifications

• Neck Type: AF ArtcoreNyatohSet-in neck

• Top/Back/Side: Linden top Linden backLinden sides

• Fretboard: Bound Walnut fretboardAcrylic block inlay

• Fret: Medium frets

• Number of Frets: 20

• Bridge: Gibraltar Performer bridge

• String Space: 10.5mm

• Tailpiece: VT60 tailpiece

• Neck Pickup: Classic Elite (H) neck pickup (Passive/Ceramic)

• Bridge Pickup: Classic Elite (H) bridge pickup (Passive/Ceramic)

• Factory Tuning: 1E,2B,3G,4D,5A,6E

• String Gauge: .010/.013/.017/.030/.042/.052

• Hardware Color: Chrome

NECK DIMENSIONS

• Scale : 628mm

• a : Width: 43mm at NUT

• b : Width: 56.3mm at 20F

• c : Thickness: 21mm at 1F

• d : Thickness: 24mm at 9F

• Radius: 305mmR
