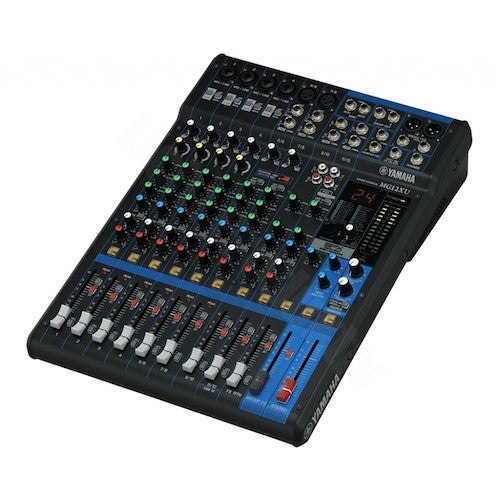

Yamaha MG12XU Mixer with effects and USB
Couldn't load pickup availability
Product Description
12-Channel Mixing Console
Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
2 GROUP Buses + 1 Stereo Bus
2 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
24-bit / 192kHz 2in / 2out USB Audio functions
Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
Includes Cubase Al DAW software download version
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Internal universal power supply for world-wide use
Optional Rack Mount Kit RK-MG12 Available
Metal chassis
Dimensions(W×H×D): 308 mm x 118 mm x 422 mm (9.6" x 2.8" x 11.6")
Net Weight: 4.2 kg (9.3 lbs.)
Specifications:
|
Mixing capability |
On-board processors |
SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
|
I/O |
Phantom power |
+48 V |
|
Digital I/O |
USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit |
|
|
Input Channels |
Mono[MIC/LINE] |
4 |
|
Mono/Stereo[MIC/LINE] |
2 |
|
|
Stereo[LINE] |
2 |
|
|
Output Channels |
STEREO OUT |
2 |
|
MONITOR OUT |
1 |
|
|
PHONES |
1 |
|
|
AUX SEND |
2 |
|
|
GROUP OUT |
2 |
|
|
Bus |
Stereo: 1, GROUP: 2, AUX: 2 (incl. FX) |
|
|
Input Channel Function |
PAD |
26 dB (Mono) |
|
HPF |
80 Hz, 12 dB/oct (Mono/Stereo: MIC only) |
|
|
COMP |
1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec |
|
|
EQ HIGH |
Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
|
|
EQ MID |
Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking |
|
|
EQ LOW |
Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
|
|
PEAK LED |
LED turns on when post EQ signal reaches 3 dB below clipping |
|
|
Level Meter |
2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
|
|
General specifications |
||
|
Total harmonic distortion |
0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min |
|
|
Frequency response |
+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
|
|
Hum & noise level |
Equivalent input noise |
-128 dBu (Mono Input Channel, Rs: 150O, GAIN knob: Max) |
|
Residual output noise |
-102 dBu (STEREO OUT, STEREO master fader: Min) |
|
|
Crosstalk |
-78 dB |
|
|
Power requirements |
AC 100 – 240 V, 50 / 60 Hz |
|
|
Power consumption |
22 W |
|
|
Dimensions |
W |
308 mm (9.6") |
|
H |
118 mm (2.8") |
|
|
D |
422 mm (11.6") |
|
|
Net weight |
4.2 kg (9.3 lbs.) |
|
|
Accessories |
Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5 |
|
|
Others |
Operating Temperature: 0 to +40°C |
|
