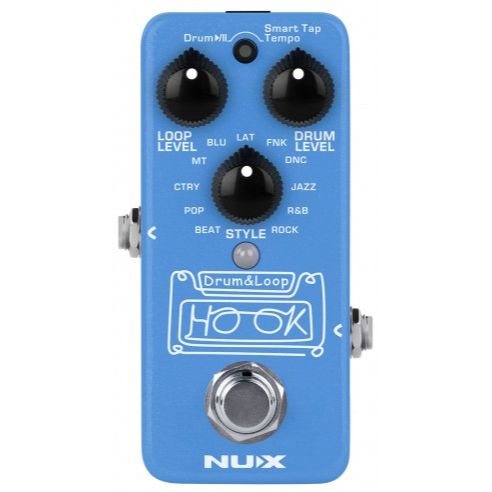

Nux Hook Drump and Loop Mini Effects Pedal
Couldn't load pickup availability
Description
The NUX NDL-3 HOOK Drump and Loop Pedal is a mini looper pedal with auto tempo detection. Simply record a phrase loop, then add a synchronized drum beat. Or you can use the included Smart Tap Tempo and play the drum beat, then start to record the phrase loop. The HOOK is intelligent and simple to operate.
When recording your phrase loop, you can choose Normal Recording or Auto Recording. Normal Recording (NR) is like regular looper pedal, while you press the footswitch, it starts to record immediately.
When in Auto Recording (AR) mode, press the footswitch to record arm the looper. HOOK will start recording once it detects your guitar signal. This is convenient while you put the HOOK on the desk, and you can use your hand instead of your foot to operate it.
The HOOK features 24-bit/44.1kHz recording resolution and 6 minutes recording time with unlimited overdubs. It is true-bypass and analog dry-through. The drum beats and loop playback are independent, which means that you can stop the loop and keep the drum beat playing. Re-play the phrase loop as you want.
The HOOK also includes a PHONES out jack! NUX knows lots of musicians love to use pedals, and they sometimes need silent practice! And finally, you can export your phrase loop WAV file through HOOK APP, please download it from the HOOK product page.
Features
- 24-bit phrase loop
- 11 rhythm styles
- Up to 6 minutes recording
- Independent loop & drum playing
- True-bypass and analog dry-through
- 1/8” phones out
Specifications
| Input Impedance | 1MΩ |
| Output Impedance | 10kΩ |
| Phones Output Impedance | 10Ω |
| Dynamic Range | 103 dB |
| DSP Processing | 44.1KHz / 32-bit |
| A/D D/A Sampling Rate | 48KHz / 24-bit |
| Power | 9V DC(Negative tip, Optional ACD-006 adapter) |
| Current Draw | less than 100mA |
| Dimensions | 94 x 51 x 53mm |
| Weight | 175g |
