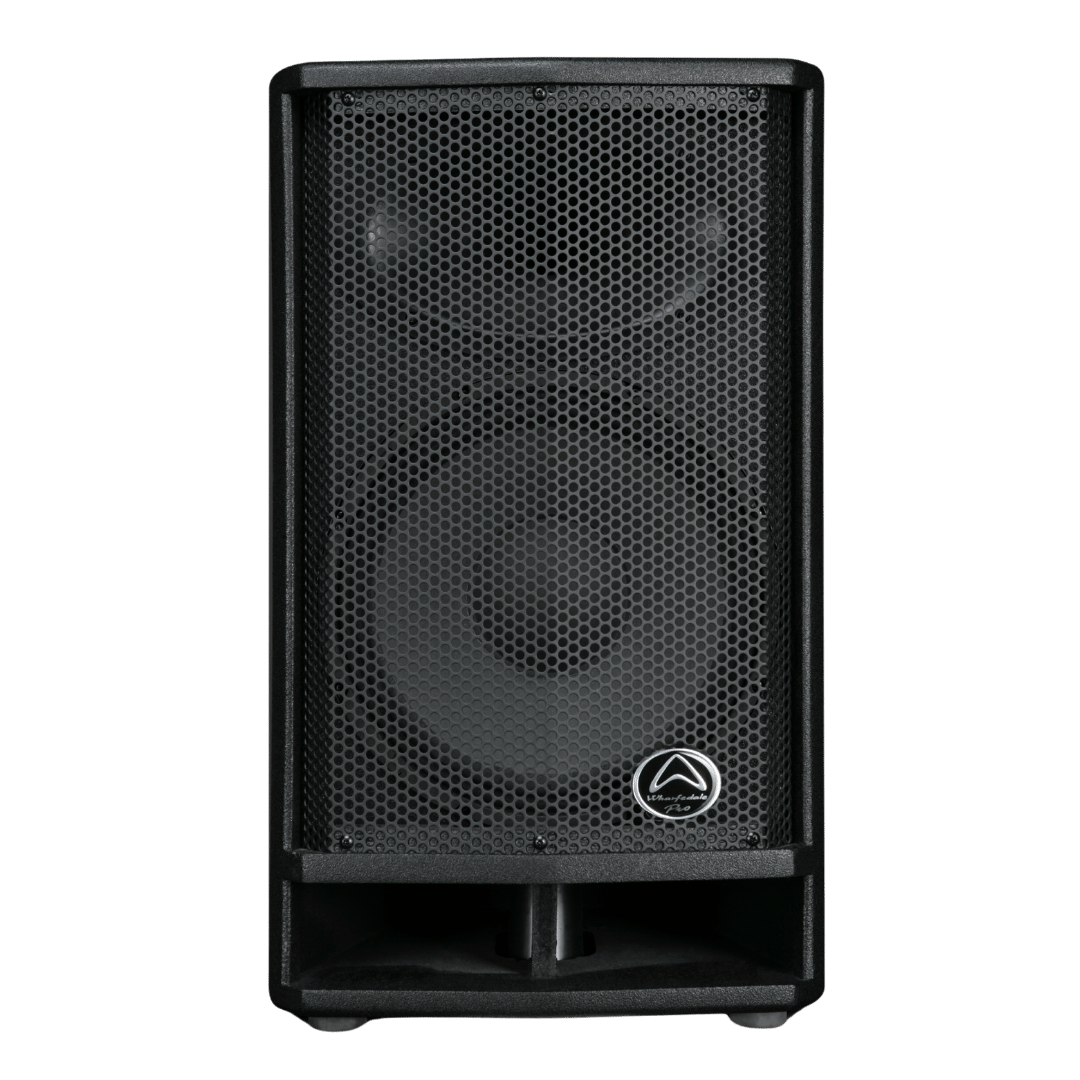

Wharfedale DVP AX12 12" Active Speaker 200W (400W Peak)
Couldn't load pickup availability
DVP-AX12 is a 12″ bi-amplified active loudspeaker from our DVP-AX Series — built for performers who demand road-ready reliability, powerful output and flexible DSP control.
Driven by Class D amplification delivering 200 W continuous (400 W peak), DVP-AX12 combines a dual-layer LF driver with a 2.5″ voice coil and a 1.75″ IRIS-X HF compression driver for extended low-end punch and articulate high-frequency response. Its 90° x 60° dispersion ensures consistent coverage across stage and audience environments.
A built-in 6-position DSP system provides quick access to performance-optimised presets, enabling rapid adaptation to different venues and acoustic challenges. The rear panel also features a 2-channel mic/line mixer for streamlined control without an external console — ideal for DJs, musicians and small event operators.
Housed in an ultra-durable enclosure designed for touring use, DVP-AX12 delivers up to 129 dB max SPL @ 1 m with clarity, stability and confidence.
Built tough, voiced professionally — DVP-AX12 is ready for the stage, install or the road.
Specifications:
| Active or Passive | Active |
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 200 W |
| System Peak Power | 400 W |
| Max SPL @ 1m | 129 dB |
| Freq Response (+/-3 dB) | 60 Hz - 18 kHz |
| Freq Range (-10 dB) | 55 Hz - 20 kHz |
| Bi-amp Mode Switch | No |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 12" |
| LF Voice Coil Size | 2.5" |
| LF Rated Impedance | 4 Ω |
| LF Power (RE:AES2-2012) | 300 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.75″ |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1″ |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 8 Ω |
| Preset Library | No |
| Input Connector | 2 x XLR & 2 x 1/4″ (Line/MIC) |
| Waveguide Type | Elliptical |
| Enclosure Material | MDF |
| Grille Material and Finish | Steel Black |
| Finish | Black Paint |
| Handles | 2 |
| Deployment | Pole |
| Pole Mount | Dual Angle (0° / 10°) 35 mm |
| Brackets Included | No |
| Rigging | No |
| Nominal Coverage (H x V) | 90° x 60° |
| Sensitivity 2.83 V / 1 m | n/a dB |
| System Rated Impedance | n/a |
| Crossover Frequency | 2.2 KHz |
| Transformer (T) | No |
| Transformer Taps (70 V) | No |
| Transformer Taps (100 V) | No |
| Input Connectors (T) | No |
| Amplifier design | Class D |
| DSP Controls | Flat / Monitor / Speech / Bass / Punch / Live |
| Preset list | Flat / Monitor / Speech / Bass / Punch / Live |
| Active loudspeaker Input Impedance | Balanced: 20 K |
| Link Connector | pin XLR |
| Input sensitivity | 775 mv |
| Max input level | 4 v |
| Line output | Switchable LOOP/MIX Balanced Socket XLR |
| Main Power | 220-240 V 50/60 Hz |
| Power Supply | SMPS |
