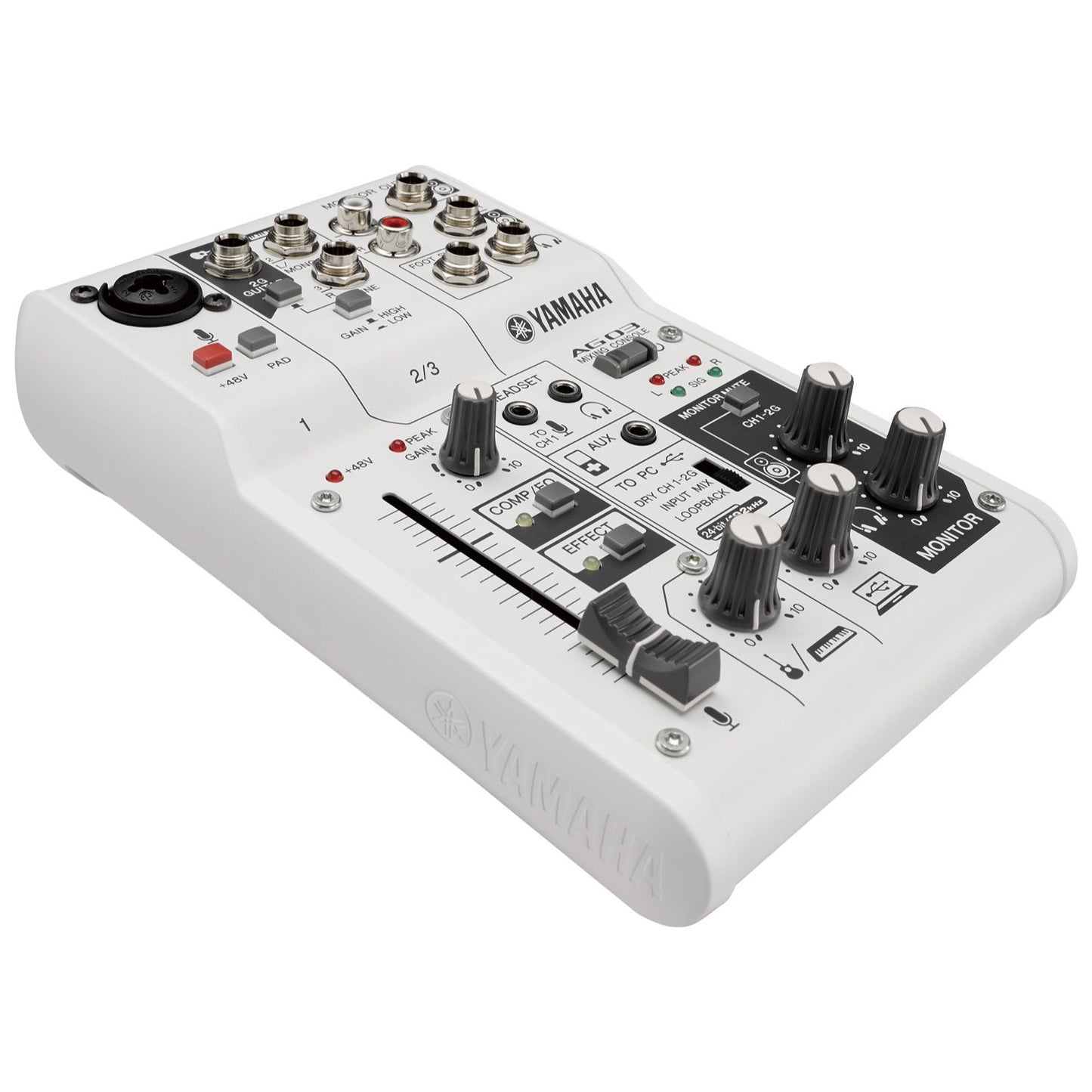

Yamaha AGO3 3 Channel Mixer USB Interface

Yamaha AGO3 3 Channel Mixer USB Interface


Transform your PC, Mac or even your iPad into a virtual radio station and spread your message to the world. With a surprisingly easy setup process, the AG lets you produce online content with high-resolution sound, either for real-time broadcast over digital streaming platforms such as USTREAM or YOUTUBE LIVE, or producing on-demand podcasts and videos. Your AG will elevate your production value considerably with background music, sound effects, and a level of sound quality that can’t be matched with a conventional computer / headset configuration.

AG06 AG03
I/O Phantom power + 48 V + 48 V
Input Channels Mono[MIC/LINE] 2 including HEADSET MIC (Plug-in Power) 1 including HEADSET MIC (Plug-in Power)
Stereo[LINE] 2 1 including Guitar input (Mono)
AUX 1 1
Output Channels STEREO OUT 1 -
MONITOR OUT 1 2
PHONES 2 including HEADSET PHONES 2 including HEADSET PHONES
Bus Stereo: 1 Stereo: 1
Input Channel Function PAD 26 dB 26 dB
PEAK LED LED turns on when the signal reaches 3 dB below clipping level LED turns on when the signal reaches 3 dB below clipping level
On-board processors DSP CH1: COMP / EQ, EFFECT (SPX Reverb) ; CH2: AMP SIM, EFFECT (SPX Reverb) CH1: COMP / EQ, EFFECT (SPX Reverb)
Level Meter USB Output Level; 2 x 2 point LED meter [PEAK, SIG] USB Output Level; 2 x 2 point LED meter [PEAK, SIG]
USB USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Power requirements DC 5 V, 500 mA DC 5 V, 500 mA
Power consumption Max. 2.5 W Max. 2.5 W
System Requirements OS Windows 7 or later / Mac OS X 10.7 or later Windows 7 or later / Mac OS X 10.7 or later
Dimensions W 155 mm (6.1") 129 mm (5.1")
H 63 mm (2.5") 63 mm (2.5")
D 202 mm (8.0") 202 mm (8.0")
Net weight 1.0 kg (2.2 lbs) 0.8 kg (1.8 lbs)
Options Foot Switch: FC5, Mic Stand Adaptor: BMS-10A Foot Switch: FC5, Mic Stand Adaptor: BMS-10A
Others Foot Switch: EFFECT Mute on / off, Operating Temperature: 0 to + 40 °C Foot Switch: EFFECT Mute on / off, Operating Temperature: 0 to + 40 °C
