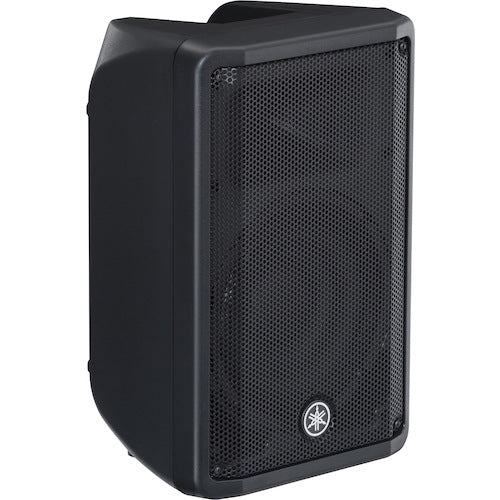

Yamaha DBR12 Powered Speaker 1000 Watts
Couldn't load pickup availability
Product Description
The DBR12 represents a perfect balance of size and performance, with 1000W of power and outstanding resolution at any output level. Ideal for front-of-house, floor monitoring applications or even the stage side fills, the DBR12 is an ideal choice for a wide range of applications.
Specifications
|
Speaker type |
2-way, Bi-amp powered speaker, Bass-reflex type |
|
|
Frequency range (-10dB) |
52Hz – 20kHz |
|
|
Nominal coverage |
H |
90° |
|
V |
60° |
|
|
Components |
LF |
Diameter:12" cone, Voice Coil:2", Magnet:Ferrite |
|
HF |
Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite |
|
|
Crossover |
2.1kHz: FIR-X tuning™ (linear phase FIR filter) |
|
|
Output power |
Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) |
|
|
Maximum output level (1m; on axis) |
131dB SPL |
|
|
I/O connectors |
INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
|
|
Processors |
D-CONTOUR: FOH/MAIN, MONITOR, OFF |
|
|
Heat dissipation |
Fan cooling, 4 speeds |
|
|
Power requirements |
100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz |
|
|
Power consumption |
74W(1/8 Power Consumption), 18W(Idle) |
|
|
Cabinet material |
Plastic |
|
|
Finish |
Black |
|
|
Handle |
Side x 2 |
|
|
Flying and mounting hardware |
Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) |
|
|
Pole socket |
35mm (Bottom x 1) |
|
|
Dimensions |
W |
376mm (14.8") |
|
H |
601mm (23.7") |
|
|
D |
348mm (13.7") |
|
|
Net weight |
15.8 kg (34.8 lbs) |
|
|
Accessories |
BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket) |
|
