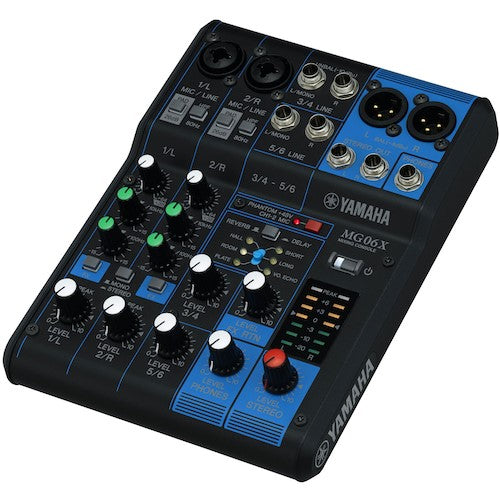

Yamaha MG06X 6 Channel Mixer with Effects
Couldn't load pickup availability
Product Description
Features
6-Channel Mixing Console
Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
1 Stereo Bus
“D-PRE” mic preamps with an inverted Darlington circuit
High-grade effects: SPX with 6 programs
XLR balanced outputs
PAD switch on mono inputs
+48V phantom power
Metal chassis
Dimensions(W×H×D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9")
Net Weight: 0.9 kg (1.98 lbs.)
Specifications
|
Outline |
||
|
Mixing capability |
On-board processors |
SPX algorithm: 6 programs |
|
I/O |
Phantom power |
+48 V |
|
Input Channels |
Mono[MIC/LINE] |
2 |
|
Stereo[LINE] |
2 |
|
|
Output Channels |
STEREO OUT |
2 |
|
PHONES |
1 |
|
|
Bus |
Stereo: 1 |
|
|
Input Channel Function |
PAD |
26 dB (Mono) |
|
HPF |
80 Hz, 12 dB/oct (Mono) |
|
|
EQ HIGH |
(Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
|
|
EQ LOW |
(Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
|
|
PEAK LED |
LED turns on when post EQ signal reaches 3 dB below clipping |
|
|
Level Meter |
2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB] |
|
|
General specifications |
||
|
Total harmonic distortion |
0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min |
|
|
Frequency response |
+0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
|
|
Hum & noise level |
Equivalent input noise |
-128 dBu (Mono Input Channel, Rs: 150O, GAIN knob: Max) |
|
Residual output noise |
-102 dBu (STEREO OUT, STEREO LEVEL knob: Min) |
|
|
Crosstalk |
-88 dB |
|
|
Power requirements |
PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha |
|
|
Power consumption |
12 W |
|
|
Dimensions |
W |
149 mm (5.9") |
|
H |
62 mm (2.4") |
|
|
D |
202 mm (7.9") |
|
|
Net weight |
0.9 kg (1.98 lbs.) |
|
|
Accessories |
Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A |
|
|
Others |
Operating Temperature: 0 to +40°C |
|
